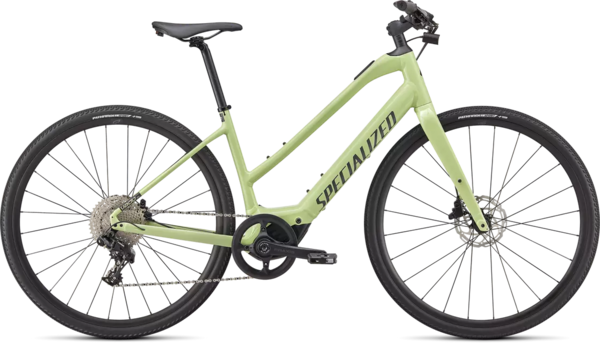

Specialized Turbo Vado SL 4.0 Step-Through

Specialized Turbo Vado SL 4.0 Step-Through
  • Color: Cast Umber/Silver Reflective
  • Color: Limestone/Black Reflective
$3,749.99 - $3,750.00
$3,750.00
Please select options
This item can be purchased online and picked up in our shop at your convenience.

Details

There's no other e-bike out there with ride quality, range, and power like this, at a weight that's light enough to carry. The Turbo Vado Super Light 4.0 is best for workouts, riding beyond the beaten path, and last-minute adventures. All you need to do is get on and go. Extra-bright, built-in lights in front and back mean you'll see and be seen. Plus, Pathfinder tires roll fast on or off the pavement with plenty of grip.

- Fully integrated and secure Specialized 320Wh downtube battery w/optional Range Extender compatibility for up to 120 miles of range.
- Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm, 2x you rider amplification (180% assistance), assist up to 28mph depending on your country.
- Premium lightweight E5 Aluminum frame.
- Clean internal cable routing, fender/rack mounts, and reflective graphics.
- Step-through frame for easier on/off and managing commuter traffic.
- Premium hydraulic disc brakes for maximum stopping power.
- Bright, integrated front and rear lighting to see and be seen.
- 11-speed Sram NX shifting for reliable performance for the long haul.
- Durable, lightweight alloy wheels paired with fast-rolling, high-grip, Specialized Pathfinder 38c tires, featuring proprietary Gripton rubber compound, are as good on gravel as they are on pavement.

Sizes:
SmallMediumLargeX-Large
Crank Length 170mm 172.5mm 172.5mm 175mm
Handlebar Width 680mm 680mm 680mm 680mm
Stem Length 60mm 75mm 75mm 90mm
Saddle Width 155mm 155mm 155mm 155mm
Seatpost Length 350mm 350mm 350mm 350mm
Stack 542mm 574mm 607mm 643mm
Reach 397mm 419mm 433mm 442mm
Head-Tube Length 130mm 161.5mm 194.5mm 230mm
Head-Tube Angle 70° 70.5° 71° 71.5°
B-B Height 291mm 291mm 291mm 291mm
B-B Drop 70mm 70mm 70mm 70mm
Trail 71mm 67mm 64mm 61mm
Fork Length (full) 390mm 390mm 390mm 390mm
Fork Rake/Offset 50mm 50mm 50mm 50mm
Front-Center 626mm 655mm 675mm 690mm
Chain-Stay Length 445mm 445mm 445mm 445mm
Wheelbase 1062mm 1091mm 1110mm 1126mm
Top-Tube Length (horizontal) 558mm 587mm 610mm 630mm
Bike Stand-Over Height 616mm 631mm 655mm 688mm
Seat-Tube Length 405mm 431.5mm 469.5mm 510mm
Seat-Tube Angle 73.5° 73.5° 73.5° 73.5°
Sizes:
SizeRider Height
Small 5'1" - 5'5"
Medium 5'5" - 5'10"
Large 5'10" - 6'1"
X-Large 6'1" - 6'4"

Specs

Frame E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds
Fork Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible
Rims 700C disc, 22mm rim depth, 21mm internal width
Hubs Front: Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rear: Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Spokes DT Swiss Industry
Tires Specialized Pathfinder Sport, 700x38c
Crankset Praxis, Forged alloy M30, custom offset
Chainrings 40T
Shifters SRAM NX, 11-speed
Rear Derailleur SRAM NX, 11-speed
Cassette/Freewheel SUNRACE, CSMS7, 11-42t, 11-speed
Chain KMC e11S, 11-speed w/ Missing Link™
Brakes Tektro HD-R290, hydraulic disc, 160mm
Handlebars Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Tape/Grips Body Geometry Women's Contour
Stem Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Seatpost Specialized, alloy, dual-bolt, 25mm offset, 27.2mm
Saddle Bridge Sport, Steel rails, 155mm
Pedals Specialized Commuter w/ grip tape & reflectors
Accessories & Extras Headlight: Lezyne Ebike Hecto STVZO E65, 210Lumens, 12V, Bell: Simple bell, Taillight: Specialized integrated saddle mount, LED Technology, 12V
Motor Specialized SL 1.1, custom lightweight motor
Battery Specialized SL1-320, fully integrated, 320Wh
Controller/Display Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Charger Custom charger, 48V System w/ SL system charger plug

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Cast Umber/Silver Reflective / Small 888818893249 93923-5002
Cast Umber/Silver Reflective / Medium 888818893904 93923-5003
Cast Umber/Silver Reflective / Large 888818892921 93923-5004 210000004844
Cast Umber/Silver Reflective / X-Large 888818893485 93923-5005
Limestone/Black Reflective / Small 888818893942 93923-5102
Limestone/Black Reflective / Large 888818892853 93923-5104 210000004845
Limestone/Black Reflective / X-Large 888818893775 93923-5105
